| Compliant | |
| EAR99 | |
| Active | |
| 8533.40.40.00 | |
| Automotive | Yes |
| PPAP | Unknown |
| Metal Oxide | |
| 517 | |
| 300 | |
| 405 | |
| 775 | |
| 100 | |
| 6500 | |
| 800 | |
| 165 | |
| -40 | |
| 85 | |
| 26 | |
| 35 | |
| 26 | |
| 10.5 | |
| Surface Mount |

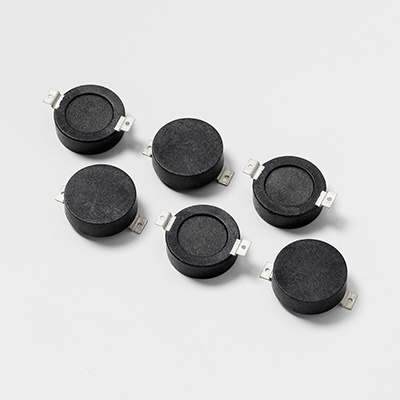

Apply different voltages to this V300SM20 MOV from Littelfuse in order to change resistance of it. Its maximum surge current is 6500 A. This device's clamping current is 100 A and clamping voltage is 775 V. This voltage dependent resistor has an operating temperature of -40 to 85 °C. Mount your voltage dependent resistor on a printed circuit board using surface mount technology to produce the most effective results. This product is 35 mm long, 10.5 mm tall and 26 mm deep. This varistor has a voltage of 517 V. Its capacitance value is 800pF. This device utilizes metal oxide technology. The maximum AC voltage rating is 300 VAC and the maximum DC voltage rating is 405 VDC.
