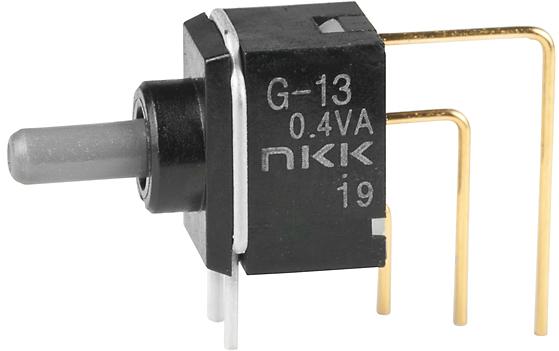

NKK SwitchesG13AVKippschalter
Switch Toggle ON OFF ON SPDT Round Lever PC Pins 0.1A 28VAC 28VDC 0.4VA PC Mount with Bracket
| Compliant | |
| EAR99 | |
| Active | |
| 8536.50.90.65 | |
| Automotive | No |
| PPAP | No |
| Process Sealed | |
| Round Lever | |
| SPDT | |
| ON OFF ON | |
| Unthreaded | |
| 0.1@28VAC 28VDC | |
| 0.4@28VAC 28VDC | |
| 500VAC | |
| 500 | |
| 80 | |
| 100000 | |
| 100000 | |
| 3.8 | |
| 1 | |
| PC Mount with Bracket | |
| PC Pins | |
| 3 | |
| 3.6 | |
| 2.54 | |
| Total/Epoxy/Process/Ring(Nitrile Butadiene Rubber) | |
| Body/Terminals/N/A/N/A | |
| Total/Epoxy/Process/Ring(Nitrile Butadiene Rubber) | |
| Glass Fiber/Polyamide | |
| Vertical Right Angle | |
| -25 | |
| 85 | |
| Ultra-Miniature | |
| 5.3 | |
| 1.6 | |
| 6.08 | |
| 7.4 | |
| 0.25 | |
| 5.3 | |
| 16.76 | |
| 7.4 |
Use this process sealed G13AV toggle switch from NKK Switches as a way to toggle the power on one of your components. It has a SPDT configuration. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. This toggle switch has a minimum operating temperature of -25 °C and a maximum of 85 °C. The G13AV toggle switch has a PC pin termination style. This product is 5.3 mm long, 7.4 mm tall and 16.76 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.
