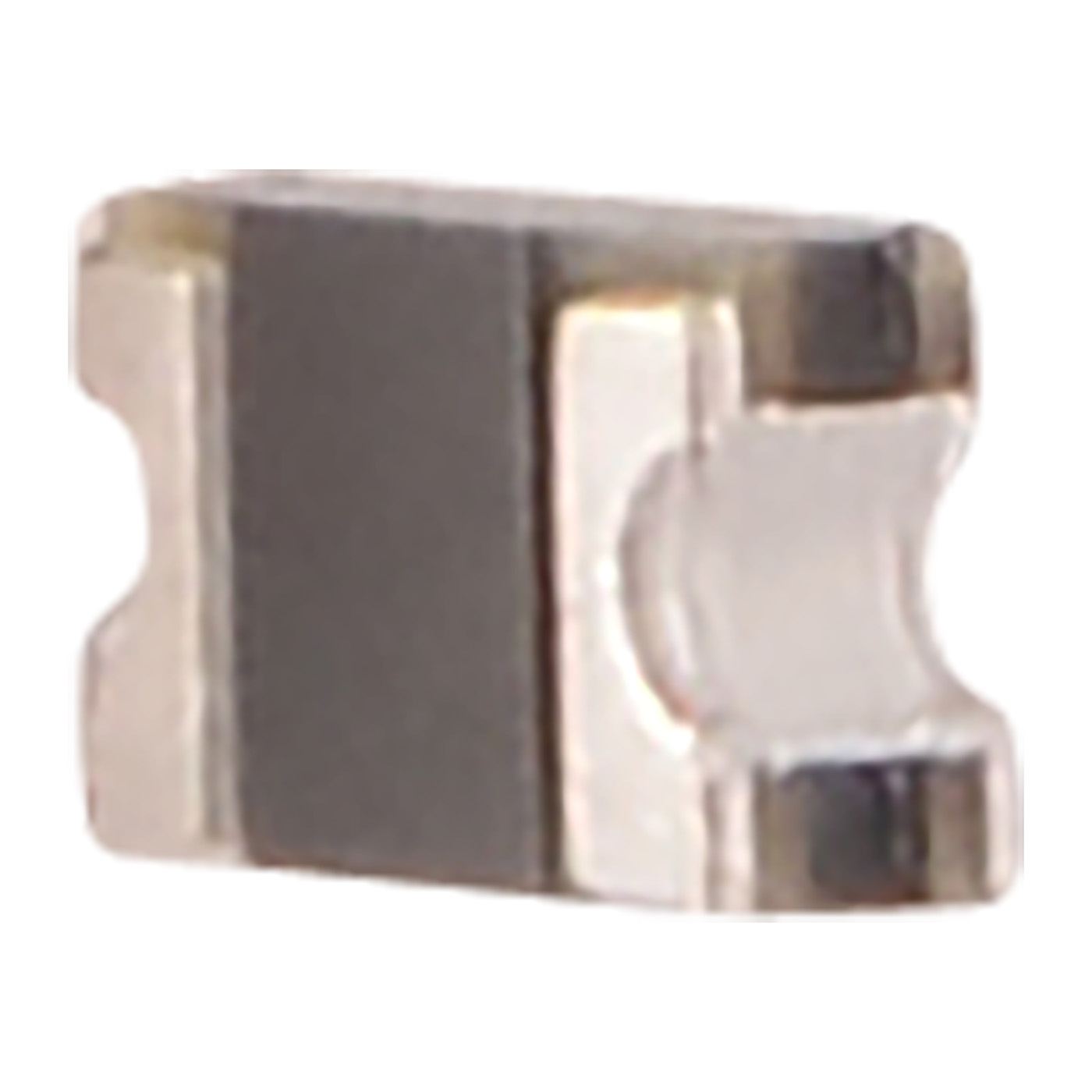

BournsCD1206-B220Gleichrichter
Diode Schottky 20V 2A 2-Pin Case 1206(3216Metric) T/R
| Compliant with Exemption | |
| EAR99 | |
| Active | |
| 8541.10.00.80 | |
| SVHC | Yes |
| SVHC überschreitet Schwellenwert | Yes |
| Automotive | No |
| PPAP | No |
| Schottky Diode | |
| Max. DC-Sperrspannung (V) | 20 |
| Single | |
| 20 | |
| 2 | |
| 40 | |
| 0.5 | |
| 500 | |
| -55 | |
| 125 | |
| Tape and Reel | |
| Befestigung | Surface Mount |
| Verpackungshöhe | 1.16(Max) mm |
| Verpackungsbreite | 2.1(Max) mm |
| Verpackungslänge | 3.6(Max) mm |
| Leiterplatte geändert | 2 |
| Lieferantenverpackung | Case 1206(3216Metric) |
| 2 | |
| Leitungsform | No Lead |
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode CD1206-B220 rectifier from Bourns. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its peak non-repetitive surge current is 40 A, while its maximum continuous forward current is 2 A. It is made in a single configuration. This rectifier has an operating temperature range of -55 °C to 125 °C.
| EDA / CAD Models |
