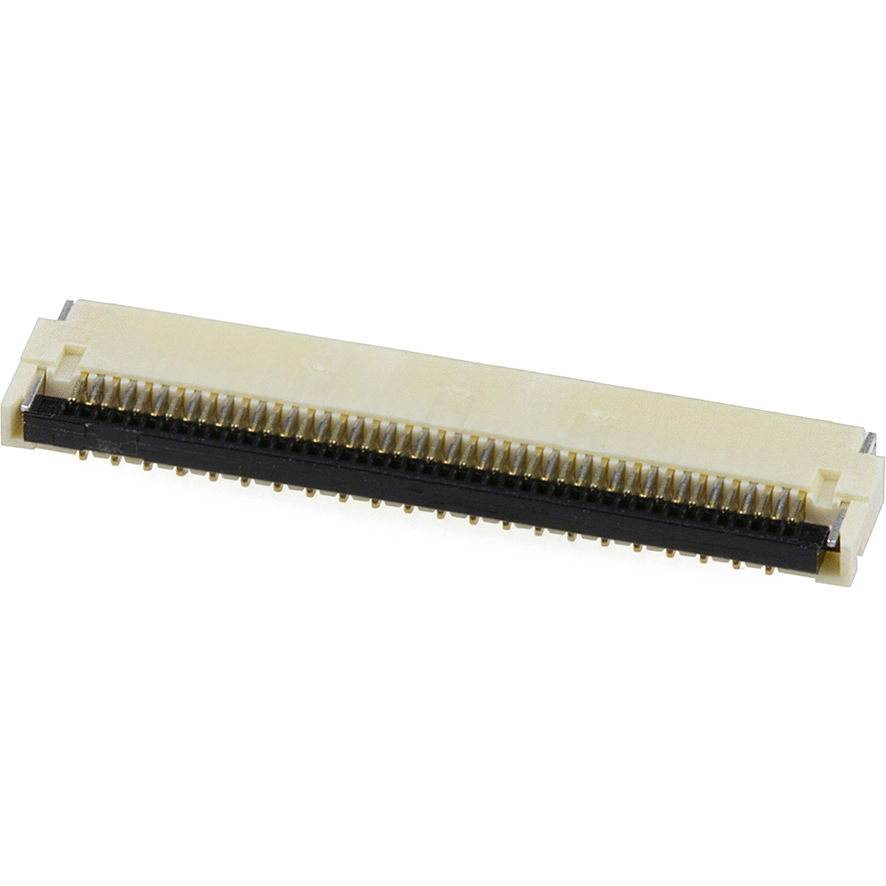

Molex5025984593Steckverbinder, FFC-FPC
Conn FPC Connector SKT 45 POS 0.3mm Solder RA SMD Easy-On™ T/R
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | No |
| PPAP | No |
| FPC Connector | |
| 45 | |
| 1 | |
| Solder | |
| 0.3 | |
| Right Angle | |
| SKT | |
| 0.3/Contact | |
| 50VDC|50VAC | |
| 50 | |
| 60 | |
| -40 | |
| 105 | |
| 10 | |
| Tape and Reel | |
| 0.108 | |
| 15.6 | |
| 3.8 | |
| 1.15 | |
| Easy-On™ | |
| Surface Mount |
When working with discrete components you should use this fpc connector 5025984593 flexible printed circuit from Molex to save valuable space. It has a maximum voltage rating of 50 VDC|50VAC. It has a right angle body orientation. This socket type connector's 45 contacts that are made out of phosphor bronze and plated with gold over nickel. Its pitch is 0.3 mm. This is a 1-row connector. This device has a maximum current rating of 0.2 A/contact. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. 5025984593 is housed in natural liquid crystal polymer. It uses the solder termination method. This flexible flat cable has an operating temperature of -40 to 105 °C. This product is 15.6 mm long, 1.15 mm tall and 3.8 mm deep.
| EDA / CAD Models |
