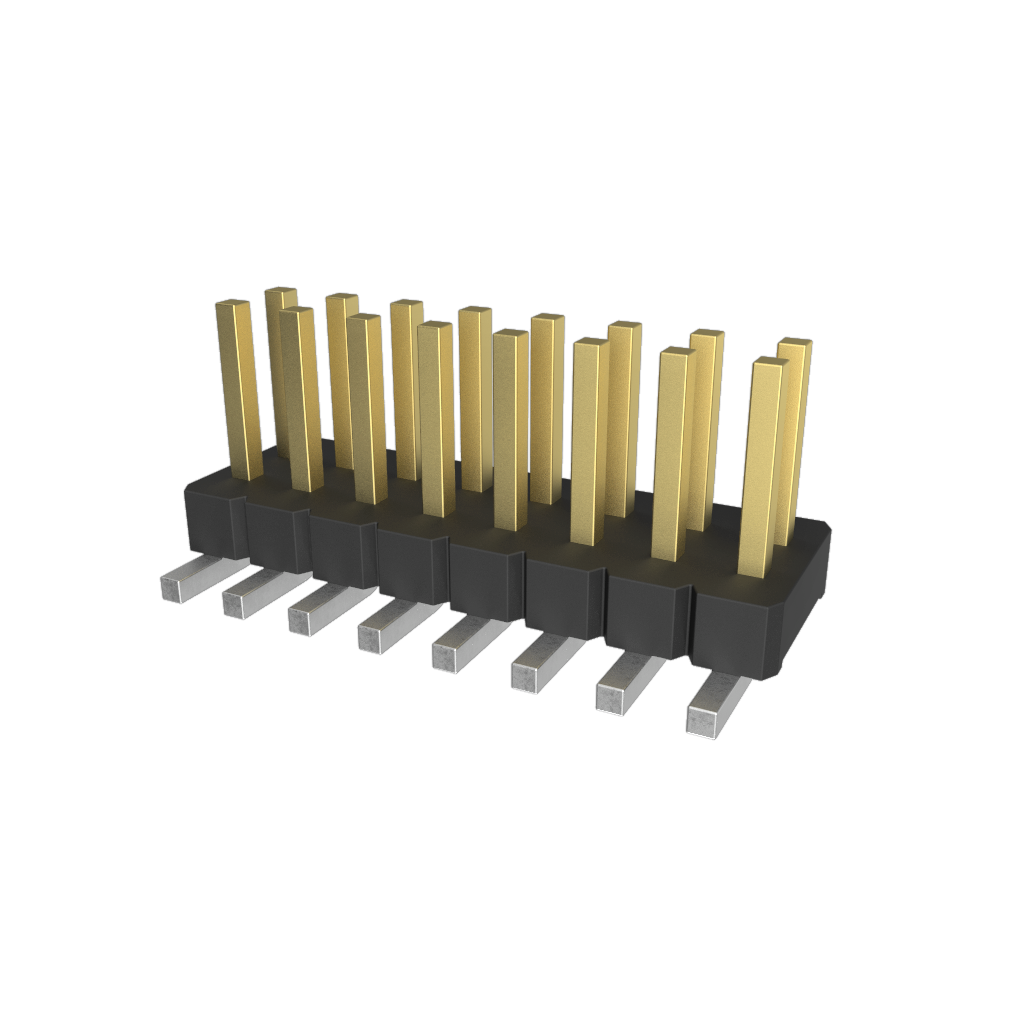

Amphenol Communications Solutions20021121-00016C4LFSteckverbinderleisten und Leiterplattenbuchsen
Minitek127®, Board to Board connector, Unshrouded vertical header, Surface Mount, Double Row, 16Positions, 1.27mm (0.5inch) pitch
| Compliant | |
| EAR99 | |
| Active | |
| 8536.69.40.40 | |
| Automotive | Yes |
| PPAP | Yes |
| Unshrouded Header | |
| HDR | |
| 16 | |
| 2 | |
| Solder | |
| 1.27 | |
| Straight | |
| 1.27 | |
| 1/Contact | |
| 125VAC | |
| 1000 | |
| 30 | |
| -55 | |
| 125 | |
| 100 | |
| Tape and Reel | |
| 10.16 | |
| 3.4 | |
| 3.5 | |
| Surface Mount |
Mounting this unshrouded 20021121-00016C4LF header connector from FCI to your printed circuit board can help you support multiple physical configuration options. This HDR connector's 16 contacts that are made out of copper alloy and plated with gold over nickel. It has a maximum voltage rating of 125 VAC. It has a straight body orientation. Its pitch is 1.27 mm. This is a 2-row connector. It has a header type gender. This device has a maximum current rating of 1 A/contact. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 10.16 mm long, 3.5 mm tall and 3.4 mm deep. It uses the solder termination method. 20021121-00016C4LF is housed in black thermoplastic. This connector has an operating temperature of -40 to 85 °C.
