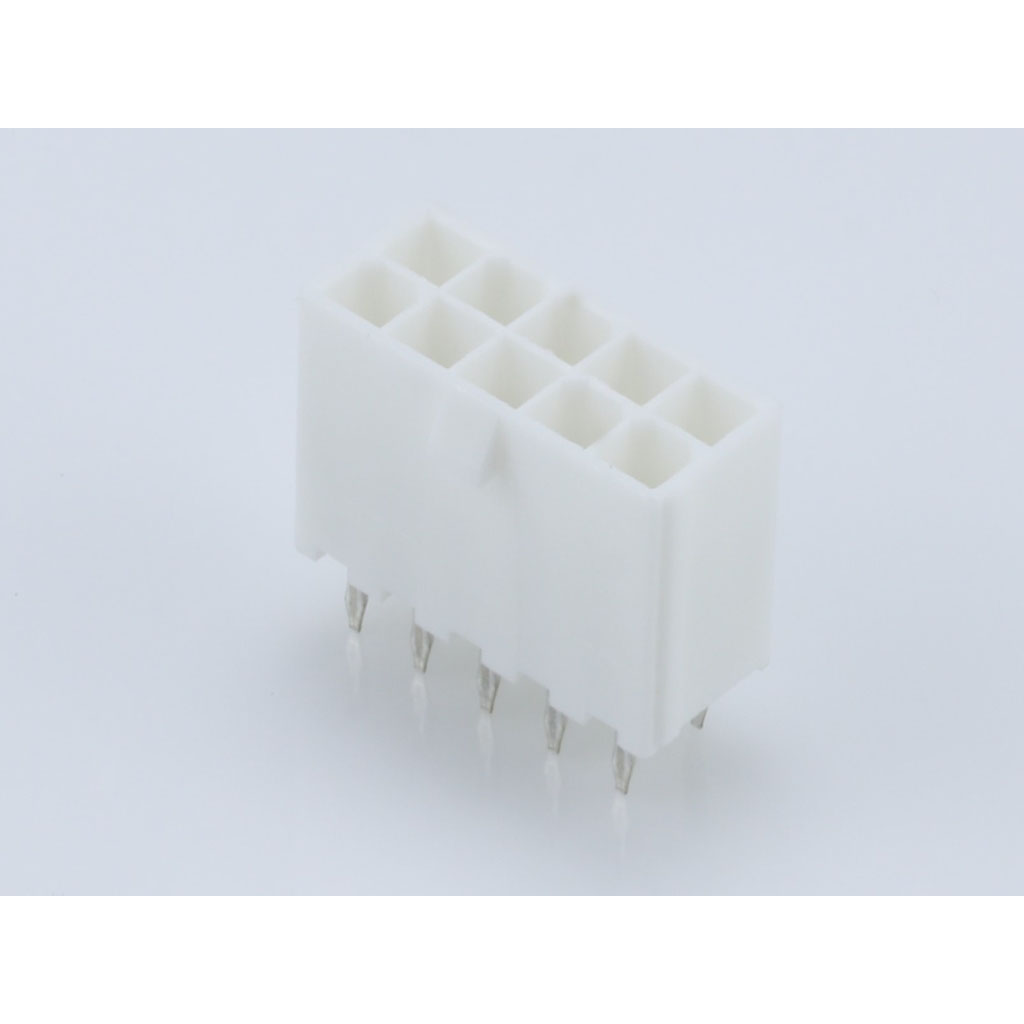

Molex0039288100Steckverbinderleisten und Leiterplattenbuchsen
Conn Wire to Board HDR 10Power POS 4.2mm Solder ST Top Entry Thru-Hole Mini-Fit Jr Bag
Other Part Names : 39288100
| Compliant | |
| EAR99 | |
| Active | |
| COMPONENTS | |
| Automotive | No |
| PPAP | No |
| Wire to Board | |
| HDR | |
| 10Power | |
| 2 | |
| Solder | |
| 4.2 | |
| Straight | |
| Center Key | |
| 4.2 | |
| 9/Contact | |
| 600V | |
| 1000 | |
| 10 | |
| -40 | |
| 105 | |
| 30 | |
| Bag | |
| 2.72 | |
| 23 | |
| 11 | |
| 12.8 | |
| Mini-Fit Jr | |
| Contact Plating Thickness | (0.889/0.5)um |
| 3.5 | |
| Through Hole |
The 0039288100 power connector from Molex is perfect for powering your circuit because it comes with the least amount of losses. This HDR connector's 10 contacts that are made out of brass and plated with bright tin over copper. It has a straight body orientation. This connector has a single port. Its pitch is 4.2 mm. It has a maximum voltage rating of 600 V. It has a header type gender. This device has a maximum current rating of 9 A/contact. 0039288100 is housed in nylon 6/6. Its 10 terminals use the solder termination method. This product is 23 mm long, 12.8 mm tall and 11 mm deep. This power connector has an operating temperature range of -40 °C to 105 °C.
| EDA / CAD Models |
